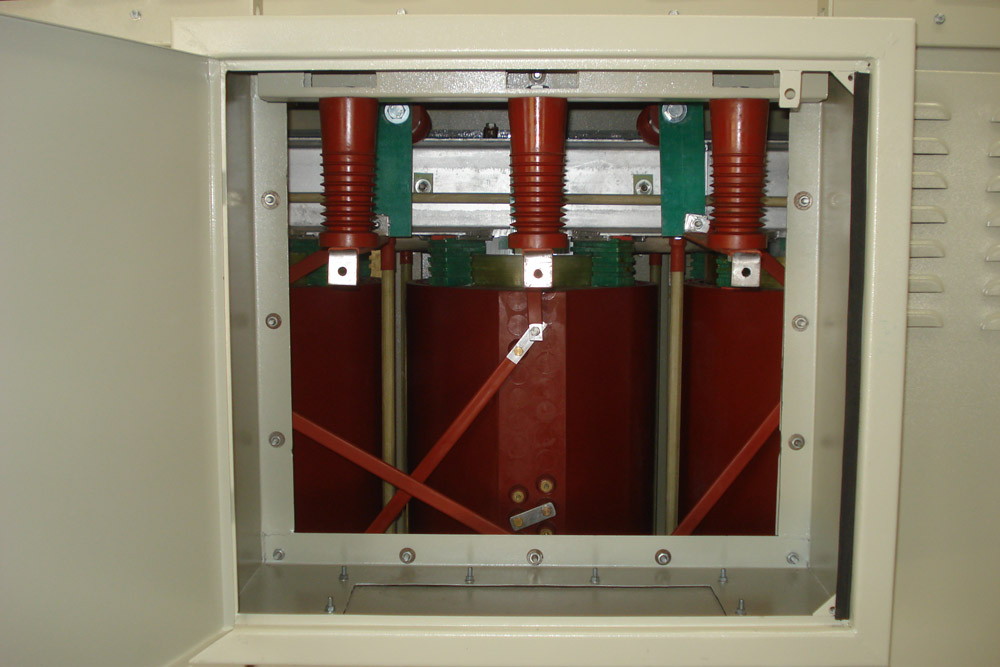

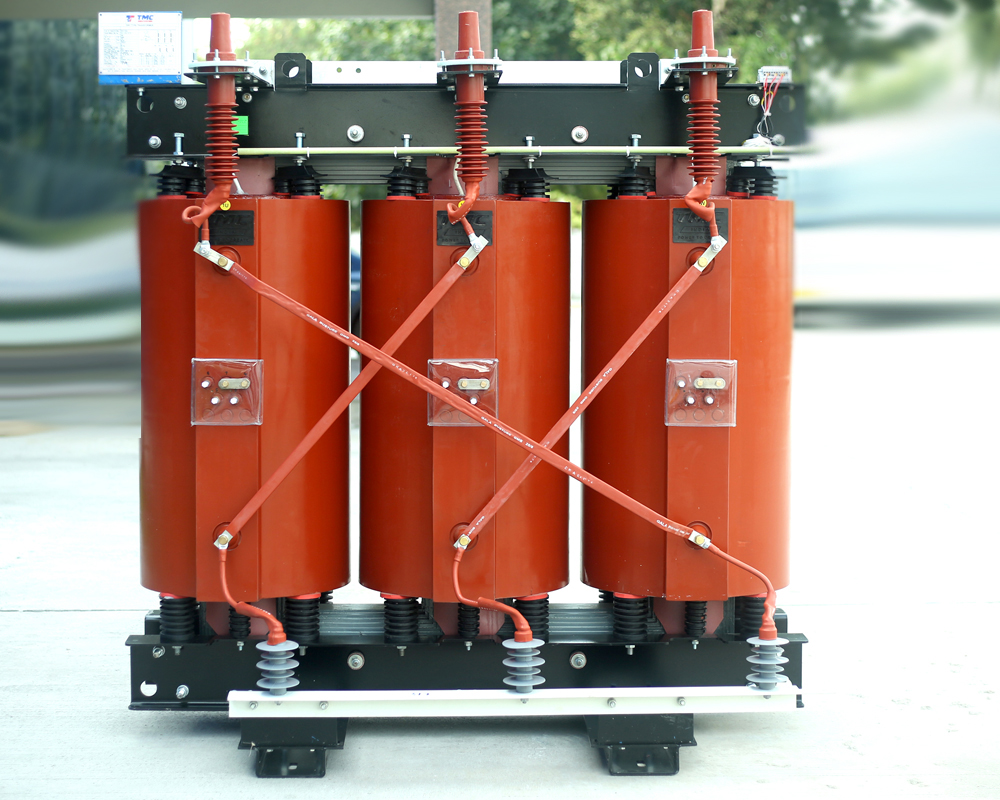

Dry Type Transformers



We are manufacturing Dry Type Three Phase Transformer EPOXY RESIN CAST DRY TYPE TRANSFORMERS 25 KVA to 1000 KVA VACUUM PRESSURE IMPREGNATED (VPI) DRY TYPE TRANSFORMERS 10 KVA to 1000 KVA Suitable for Indoor Installation and Residential Buildings Customised as per Customer needs in accordance with IS

Ratings : Epoxy Resin Cast: 25KVA to 1000KVA,

Vacuum Pressure Impregnated:

10KVA to 1000KVA

Applicable Standards : IS11171
Cooling : Natural Air Cooling / Forced Air Cooling
Core : CRGO
Frequency : 50Hz
Resin : Dr. Beck / Huntsman H class Resin
Primary Voltage : 11KV
Secondary Voltage : 433V / 415V
Winding Material : Copper / Aluminium
  • Naturally Air Cooled
  • Energy Efficient Designs
  • Suitable for Indoor Application
  • Space Saving
  • Environmentally Preferable
  • Low Maintenance
  • Increased Safety Factor
  • Low Fire Hazard
  • Chemical, oil and gas industry
  • Environmentally sensitive areas (e.g. water protection areas)
  • Fire-risk areas (e.g. forests)
  • Inner-city substations
  • Indoor and underground substations
